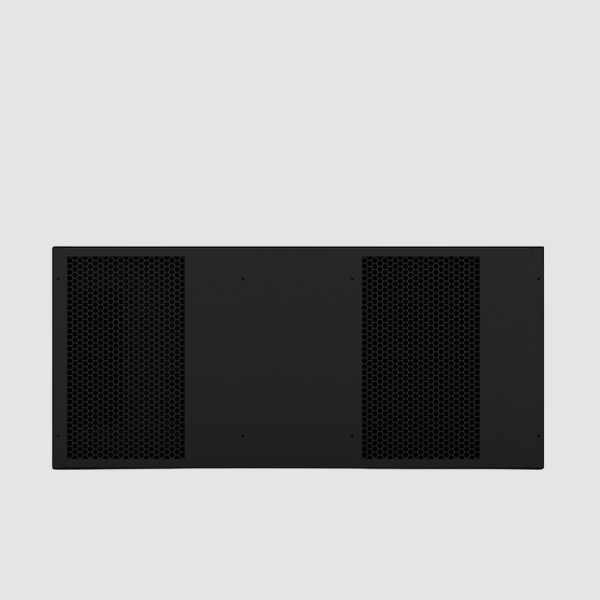

WHISPERKOOL Mini Ceiling Mount – Ductless Cooling Unit

The Mini Ceiling Mount split system has been created to handle smaller-capacity cellars. In a small environment, you need all the space you can get for racking. Do not let a cooling unit limit you.

Product features:

• Cooling Capacity of 500 ft3
• 110V condenser
• Offers excellent efficiency by drawing in the warmer air which accumulates at the ceiling, cooling and dispersing the air throughout the environment
• Standard and 24V thermostat options available
• KDT Digital Controller/Thermostat with 50-ft. cable
• No ducting required
• Allows for maximum racking space
• Includes a pump system to remove excess condensation
• Includes cold weather start kit
• The grille of the unit comes with a durable black powder-coated finish, which can be painted to match the cellar

Split systems can be installed in a variety of ways, and the condensing unit may be located in a mechanical room, basement, backyard, or even a rooftop.

The condensing units which WhisperKOOL units use were designed to operate between temperatures of 20°F and 110°F. However, there are some areas in the country which may drop below 20°F in winter. When outside temperatures drop, the pressure in the system drops as well. This presents a challenge, because our systems operate using a pump down cycle and use a low-pressure switch to turn the compressor on and off. However, when the temperature drops below 20°F, the pressure in the system is too low to start the compressor. The cold weather start kit bypasses the low-pressure switch on startup and uses heaters installed on the receiver to raise the pressure and allow the system to start.

The Cold Weather Start Kit enables WhisperKOOL to operate in environments as cold as -20°F.

It is important that the cooling system stays operational during cold weather conditions, as heating the house using the central HVAC system will indirectly increase the temperature of the wine cellar. This kit will ensure that the cooling system will continue to operate efficiently in cold weather environments to maintain an optimal wine storage temperature.

Note: A qualified HVAC-R technician is required for installation. Failure to have the system installed by a qualified technician will void the warranty.

Please click below to view all product specifications for the Mini Ceiling Mount cooling system (110V).

Download the WHISPERKOOL Mini Ceiling Mount Cooling Unit Owner Manual.
